ELECTRICAL ENGLISH
英语
电工
Unit 1 Job and Workplace
Unit 2 Electrical Tools and Materials
Unit 3 House Wiring
Unit 4 Measuring Instrument
Contents
Unit 5 Motors and Transformers
Lesson7 Reading Diagrams
Lesson 8 Installing Entrance Equipment
Lesson 9 Installing Cables

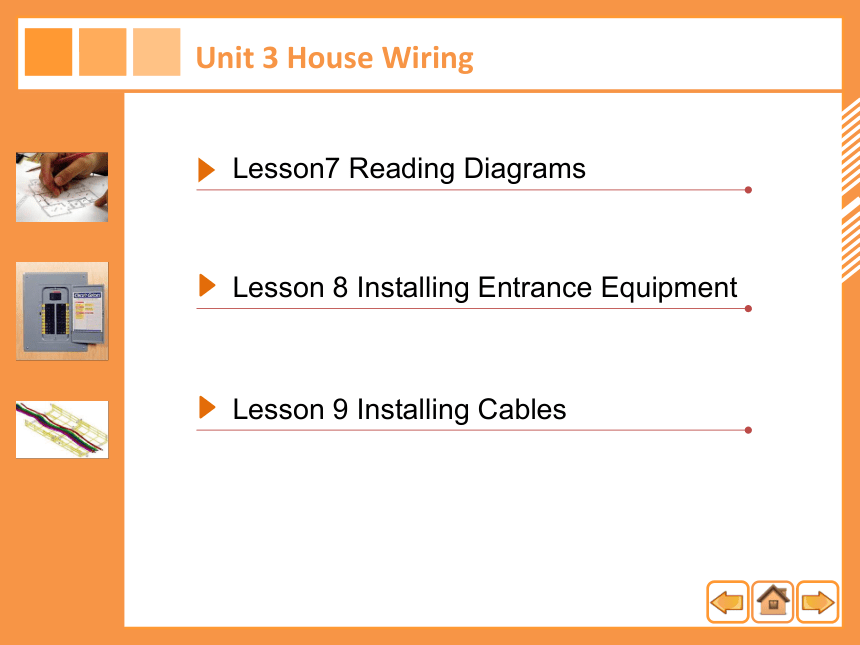

Unit 3 House Wiring
Lesson7 Reading Diagrams
Goal Learn useful expressions for using wiring plan
Look and Study
Dialogue
Reading
Further Study
Words and Phrases
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

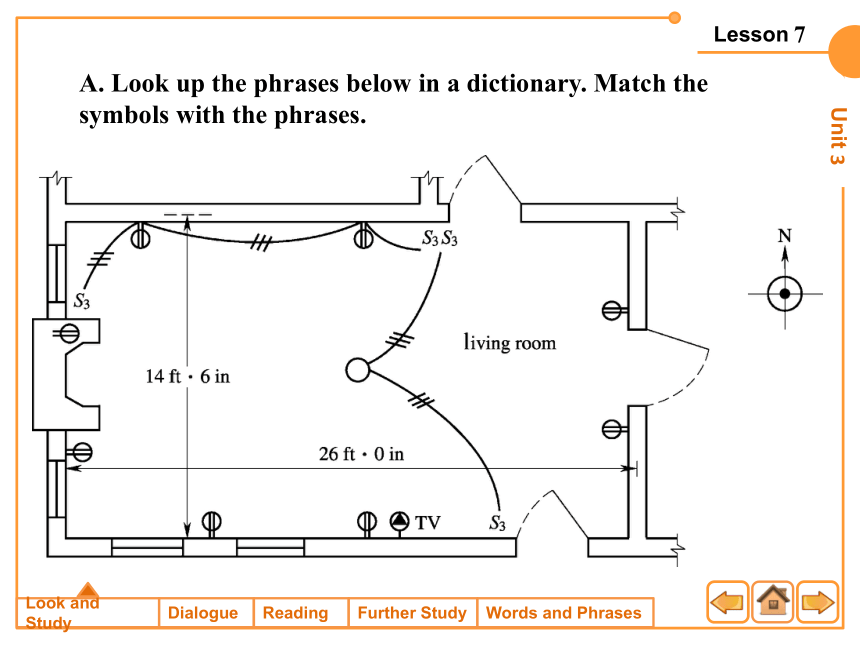

A. Look up the phrases below in a dictionary. Match the symbols with the phrases.
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

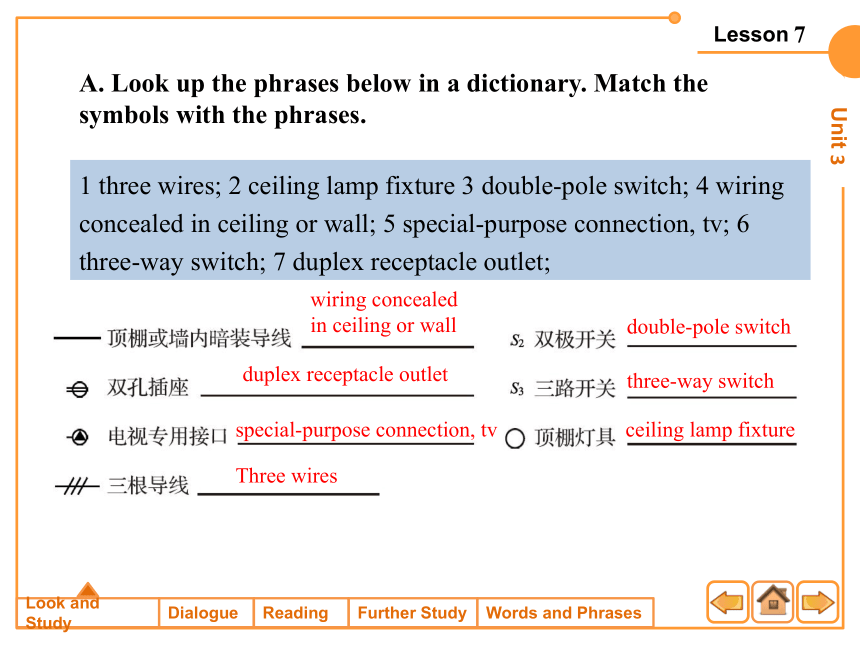

A. Look up the phrases below in a dictionary. Match the symbols with the phrases.
1 three wires; 2 ceiling lamp fixture 3 double-pole switch; 4 wiring concealed in ceiling or wall; 5 special-purpose connection, tv; 6 three-way switch; 7 duplex receptacle outlet;
wiring concealed
in ceiling or wall
duplex receptacle outlet
special-purpose connection, tv
Three wires
double-pole switch
three-way switch
ceiling lamp fixture
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

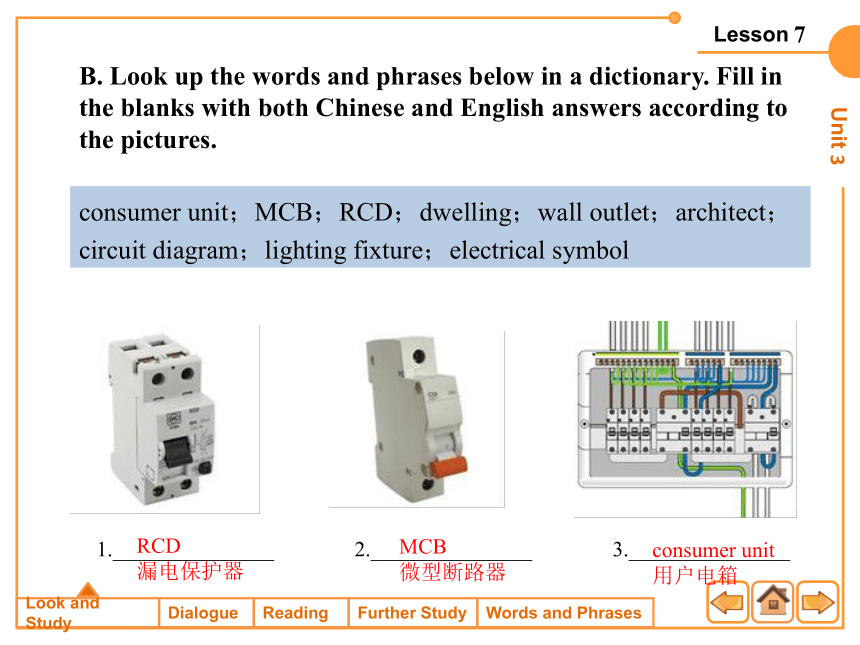

B. Look up the words and phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
consumer unit；MCB；RCD；dwelling；wall outlet；architect；circuit diagram；lighting fixture；electrical symbol
1._______________ 2._______________ 3._______________
RCD
漏电保护器
MCB
微型断路器
consumer unit
用户电箱
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

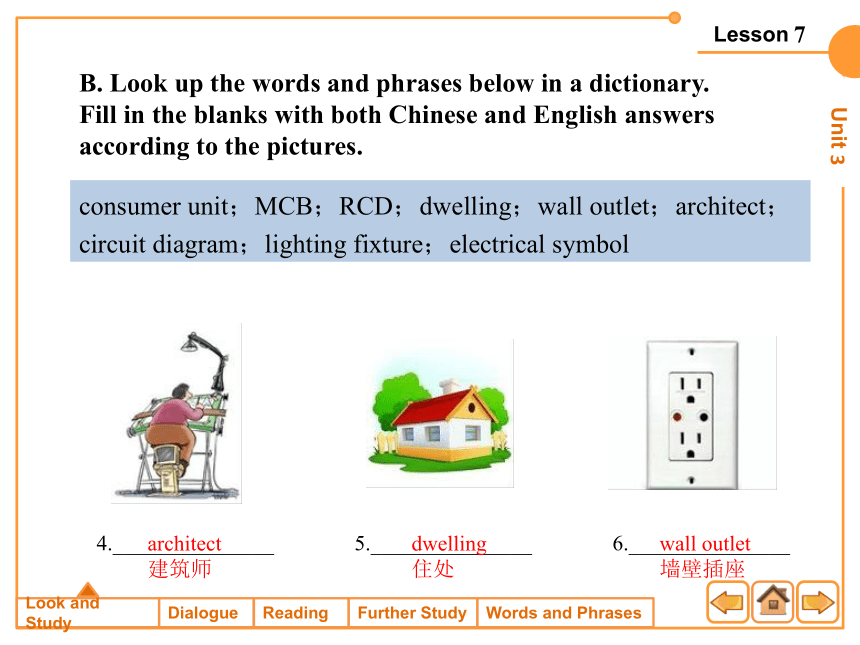

B. Look up the words and phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
consumer unit；MCB；RCD；dwelling；wall outlet；architect；circuit diagram；lighting fixture；electrical symbol
4._______________ 5._______________ 6._______________
architect
建筑师
dwelling
住处
wall outlet
墙壁插座
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

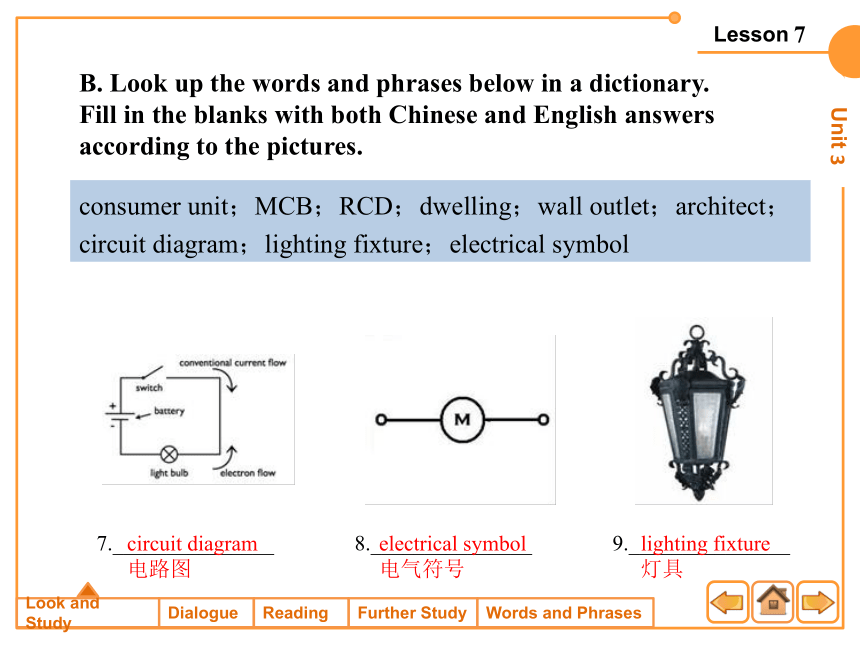

B. Look up the words and phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
consumer unit；MCB；RCD；dwelling；wall outlet；architect；circuit diagram；lighting fixture；electrical symbol
7._______________ 8._______________ 9._______________
circuit diagram
电路图
electrical symbol
电气符号
lighting fixture
灯具
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

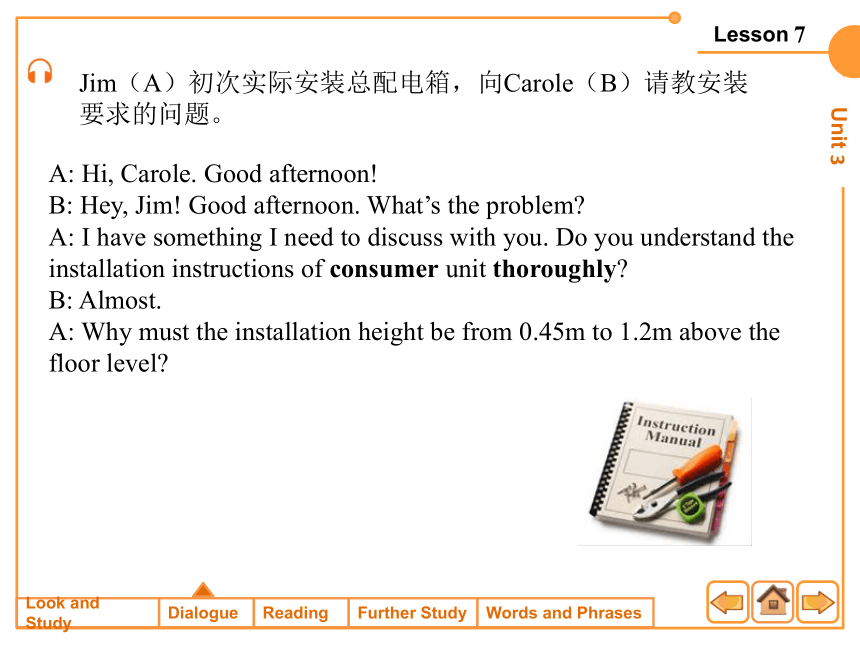

Jim（A）初次实际安装总配电箱，向Carole（B）请教安装要求的问题。
A: Hi, Carole. Good afternoon!
B: Hey, Jim! Good afternoon. What’s the problem
A: I have something I need to discuss with you. Do you understand the installation instructions of consumer unit thoroughly
B: Almost.
A: Why must the installation height be from 0.45m to 1.2m above the floor level
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

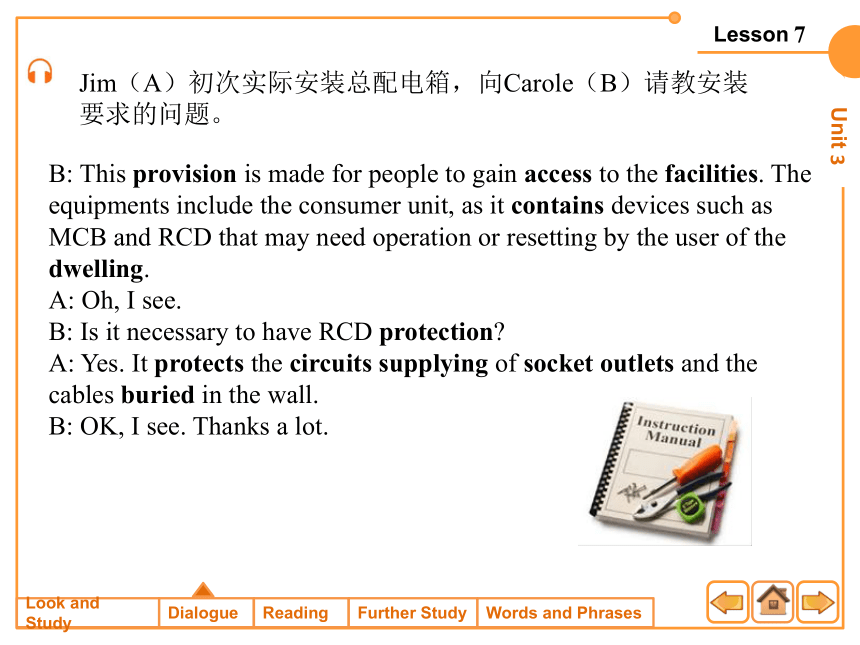

Jim（A）初次实际安装总配电箱，向Carole（B）请教安装要求的问题。
B: This provision is made for people to gain access to the facilities. The equipments include the consumer unit, as it contains devices such as MCB and RCD that may need operation or resetting by the user of the dwelling.
A: Oh, I see.
B: Is it necessary to have RCD protection
A: Yes. It protects the circuits supplying of socket outlets and the cables buried in the wall.
B: OK, I see. Thanks a lot.
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases

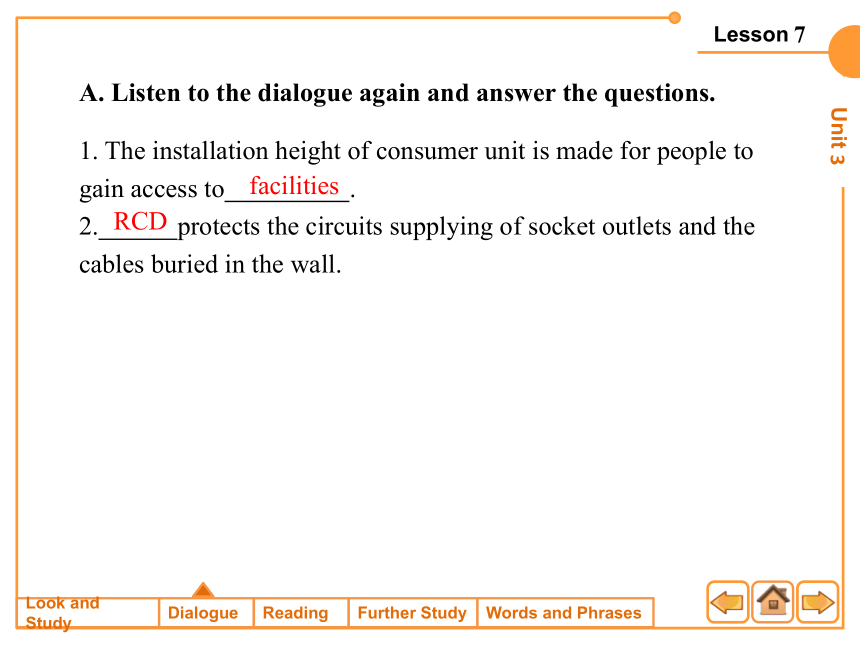

A. Listen to the dialogue again and answer the questions.
1. The installation height of consumer unit is made for people to gain access to .
2. protects the circuits supplying of socket outlets and the cables buried in the wall.
facilities
RCD
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
B. Reorder the letters with your partner.
Letters Words
set re
ket c so
pp su ly
s ac ces
tec pro t
cir cui t
n con tai
er consum
consumer
reset
socket
supply
access
protect
circuit
contain
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
布线平面图
A necessary part of any set of drawing for construction of a building is the wiring plan. Architects, electrical designers, and contractors use floor-plan diagrams to locate components of the building’s electrical system, such as receptacle outlets, switches, lighting fixtures, and other wiring devices. These devices and wiring arrangements are represented by means of symbols. The living-room plan shows two three-way switching arrangement. In one
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
布线平面图
arrangement, a ceiling outlet is switched from two door locations. Similarly, two receptacle outlets on the north wall are switched from two separate locations. The connection between switch and ceiling outlet is drawn with a medium weight solid line, indicating that the connection (conduit or cable) is to be concealed in the wall or ceiling above. The cross lines indicate the conductors in the conduit or cable. If cross lines are omitted, two wires are understood to be in the connection.
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
A. Match the English with the Chinese. Draw lines.
B. Choose the best answer
1. Electrical designers use floor-plan diagrams to components of the building’s electrical system.
A. buy; B. repair; C. locate; D. install
2. Electrical devices and wiring arrangements on floor-plan diagrams are represented by means of .
A. line; B. picture; C. symbol; D. photo
3. The cross lines on diagrams indicate .
A. the conductors. B. the conduits; C. The cables; D. the conductors in the conduit or cable
a set of drawings 三路开关
a floor-plan 一套图纸
by means of words 建筑平面图
a three-way switching 通过语言
C
C
D
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
C. Learn the important grammar and phrase in the text.
1. such as 例如
Architects electrical designers, and contractors use floor-plan diagrams to locate components of the building’s electrical system, such as receptacle outlets, switches, lighting fixtures, and other wiring devices. 建筑师、电气工程设计师和承建商使用建筑平面图规划建筑电气系统中各设备位置，如插座插口、开关、灯具及其他布线设备。
练习：它可以广泛应用于家电设备、电子产品、汽车等行业。
提示：apply, industry, motorcycle
英文：
2. by means of用，依靠
These devices and wiring arrangements are represented by means of symbols. 这些设备和线缆的布置通过符号表示出来。
练习：公司通过二维线路图控制电气系统。
提示：control, 2D line
英文：
It can be applied in various industries, such as household appliances, electronics , motorcycle , automobile .
Companies control an electric system by means of 2D line diagrams.
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
Three Way Switches.
THREE WAY SWITCHES are so called because they have three connected（连接的）points inside them. If two 3-way switches are arranged, the lights can be turned on or off at either end of the circuit.
CIRCUIT DIAGRAM below shows the layout(布局)of one of the off positions. You can see that the circuit is open and so no current can flow. If the positions of both switches were reversed（反置）then it would still be an open circuit（开路）. There are also two ways for the circuit to be closed: both switches in the up position or both switches in the down position.
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
consumer [k n'sju:m ] n. 消费者，用户 thoroughly ['θ r li] adv. 彻底地 provision [pr 'vi n] n. 规定, 条款, 条件 access [' kses] n. 进入 facility [f 'siliti] n. 设施，设备 contain [k n'tein] vt. 包含 operation [, p 'rei n] n. 操作 reset [,ri:'set] vt. 重置 dwelling ['dweli ] n. 住处 protection [pr u'tek n] n. 保护 protect [pr u'tekt] vt. 保护 circuit ['s :kit] n. 电路，回路 supply [s 'plai] vt. 供给，提供 socket ['s kit] n. 插孔，插座
outlet ['autlet] n. 出口
socket outlet插座
bury ['beri] vt. 掩埋, 埋藏
set [set] n.一套
drawing ['dr :i ] n. 图画
construction [k n'str k n] n. 建造, 建设; 建筑业；建造物, 建筑物；
plan [pl n] n. 平面图
architect ['ɑ:kitekt] n. 建筑师
designer [di'zain ] n. 设计师
floor-plan建筑平面图
locate [l u'keit] vt. 定位
Look and Study
Dialogue
Reading
Further Study
7
3
Words and Phrases
component [k m'p un nt] n. 成分，组件 receptacle [ri'sept kl] n. 插座 fixture ['fikst ] n. 固定装置 arrangement [ 'reind m nt] n. 布置 symbol ['simb l] n.符号 ceiling ['si:li ] n. 天花板 locations [l u'ke ns] n. 位置，地点 similarly ['simil li] adv. 同样地 separate ['sep reit] adj. 单独的，分开的 weight [weit] n. 重量 indicate ['indikeit] vt. 表明，象征；指示 conceal [k n'si:l] vt. 隐藏 cross [kr :s] adj. 交叉的 omit [ u'mit] vt. 省略 consumer unit总配（用户）电箱
floor level 楼面
gain access to接近，可以使用
MCB (Miniature Circuit Breaker) 小型断路器
RCD (residual current device) 漏电保护器
socket outlet插座
a set of一套
floor plan建筑平面图
lighting fixture 灯具
by means of通过，借助于
three-way switching 三路开关
Lesson 8 Installing Entrance Equipment
Goal Learn useful expressions for installing entrance devices
Look and Study
Dialogue
Reading
Further Study
Words and Phrases
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
A. Look up the phrases below in a dictionary. Fill the blanks with the right numbers.
weather head; service entrance cable; power pole; main service panel;
electric meter; meter box
1
2
3
4
5
6
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
B. Look up the words and phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
voltage tester; continuity tester; fish tape；transformer; ground rod; breaker box
1._______________ 2._______________ 3._______________
fish tape
穿线钢带
continuity tester
断路探查器
voltage tester
电压检测器
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
B. Look up the words and phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
voltage tester; continuity tester; fish tape；transformer; ground rod; breaker box
4._______________ 5._______________ 8._______________
transformer
变压器
breaker box
开关盒
ground rod
接地棒
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
两个电工要进行室内布线工作，开始检查工具和材料准备情况。
A: I think I’ve got all the wiring materials and tools.
B: Good, the materials are ready, but we’d better check the tools again to make sure. We mustn’t forget anything; otherwise the time limit for the project will be delayed. You tell me what we’ve got and I’ll make sure we’ve got it.
A: OK. We’ve got two household toolboxes.
B: Right, we’ve got them. Now what’s the next tool
A: A 3001 voltage continuity tester.
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
两个电工要进行室内布线工作，开始检查工具和材料准备情况。
B: We’ve certainly got the tester. It’s so special you can’t miss it!
……
A: The next tool is a wire stripper.
B: Right, we’ve got it. And the last one
A: The last one is a fish tape.
B: Ok, we’ve got that, too. Now we can get started.
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
A. Listen to the dialogue again and circle Yes or No.
1. They are checking the tools for wiring. Yes No
2. They check the tools again because the time limit for the project has been delayed.
Yes No
3. They miss a continuity tester.
Yes No
Yes
No
No
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
B. Reorder the letters with your partner.
Letters Words
lay de
t li mi
box tool
er strip
striper
delay
limit
toolbox
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
进户装置安装
The power company’s overhead service lines feed the transformer to step down the voltage to feed your home. It then travels to the weather head which is attached to a conduit connected to a meter box.
Two 120 volt wires and a grounded neutral wire feed the meter through the weather head. The power company is responsible for power to the meter and the homeowner takes it from there.
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
进户装置安装
The electric meter is attached to the service entrance pipe and is usually attached to the side of your house. It may be attached to the power company’s power pole also. It can be fed overhead or underground. The service must be connected to a ground rod outside the house.
The electrical panel, breaker box, fuse box or service panel is the next device in line. This panel’s job is to distribute power throughout your home and disconnect power from the incoming feed.
The power comes in to a main breaker, individual breakers then is distributed to individual circuits (called branch circuits) throughout your home.
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
A. Match the English with the Chinese. Draw lines.
step down the voltage 分配功率
branch circuit 降低电压
grounded neutral wire 总开关
distribute power 接地的中性线
main breaker 支路
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
B. Choose the best answer
1. to step down the voltage to feed your home.
2. wires and a grounded neutral wire feed the meter.
3. The electric meter attached to .
4. The service must be connected to outside the house.
5. distribute power throughout your home.
The power company’s overhead service lines feed the transformer
Two 120 volt
the service entrance pipe
a ground rod
The panel’s job is to
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
C. Learn the important grammar and phrase in the text.
1. feed A（with B）/feed B（into A）供给、供应
The power company’s overhead service lines feed the transformer to step down the voltage to feed your home. 电力公司的架空线路输送电能至变压器，再降压至住宅用电电压。
练习：the electricity line is fed with power through an underground cable./Power is fed into the electricity line through an underground cable.
中文：
2. be attached to把……固定，把……附（在……上）
The electric meter is attached to the service entrance pipe…电表安装在进户端的的配管上……
练习：电源插头需要由电气技术人员安装在机器上。
提示：plug, technicians
英文：
电线经过地下供电。
A power plug has to be attached to the machine by electric technicians.
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
Installing An Electrical Distribution Sub-Panel
The primary purpose of an electrical sub-panel is to provide you with additional electrical circuits. It does not change the total amount of power available to the home. The primary difference between a main electrical distribution panel and a sub-panel is in the main disconnector(独立的隔离开关). Modern electrical distribution panels have a main disconnector circuit breaker built into them.
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
otherwise [' waiz] adv. 否则 limit ['limit] n. 界限，限度 delay [di'lei] vi. 延期，耽搁 toolbox ['tu:l,b ks] n. 工具箱 continuity [,k nti'nju:iti] n. 连续性 tester ['test ] n. 试验装置，检测器 stripper ['strip ] n. 剥离器 tape [teip] n. 带子 overhead [' uv hed] adj. 高架的 feed [fi:d] vt. 供给 transformer [tr ns'f :m ] n.变压器 attach [ 't t ] vt. 附着 connect [k 'nekt] vt. 连接 meter [mi:t ] n. 仪表 volt [v lt] n. 伏特 grounded ['graundid] adj. 接地的
neutral ['nju:tr l] adj. 中立的，中性的
homeowner ['h um, un ] n. 私房屋主
entrance ['entr ns] n. 入口
pipe [paip] n. 管
pole [p ul] n. 杆
rod [r d] n. 棒
breaker ['breik ] n.断路器
distribute [di'stribju:t] vt. 分配
throughout [θru:'aut] prep.遍及
disconnect [,disk 'nekt] vt. 断开
incoming ['in,k mi ] adj. 引入的
main [mein] adj. 主要的
individual [,indi'vidju l adj. 单独的
branch [brɑ:nt ] n. 分支
Look and Study
Dialogue
Reading
Further Study
8
3
Words and Phrases
make sure确定
time limit期限
continuity tester断路探查器
wire stripper剥线器
fish tape穿线钢带
get started行动起来
step down逐步减低
weather head防水罩
meter box 表箱
service entrance总进户端
ground rod接地棒
power pole电线杆
breaker box开关盒
fuse box保险丝盒
service panel配电箱
branch circuit 支路
Lesson 9 Installing Cables
Goal Learn useful expression for installing cables
Look and Study
Dialogue
Reading
Further Study
Words and Phrases
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
Look up the words and phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
1._______________ 2._______________ 3._______________
kitchenette water heater cable raceway
cable raceway
电缆通道
kitchenette
小厨房
water heater
热水器
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
Jack（A）准备安装小厨房和电气设备，并重新敷设线路。他约请电气公司的Smith（B）先生上门服务。
A: Thanks for coming so quickly, Mr. Smith. I’d like to discuss my plans for the house wiring with you.
B: Yes, my boss tells me you want to rewire the rooms and put in a kitchenette and a shower.
A: Yes, that’s right and I don’t want to see all those ugly cables.
B: Well, you’ll need take down the unconcealed cables and install a new underground cable.
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
Jack（A）准备安装小厨房和电气设备，并重新敷设线路。他约请电气公司的Smith（B）先生上门服务。
A: That’s what I want. What’s your advice on the water heater
B: In your case you’ll need a strong water heater. You’d better install a continuous flow water heater to save more space. A: I’d take this advice.
B: You’ll need 380-volt three-phase current and a small consumer unit with circuit breakers and an RCD.
A: OK. I’ve got a sketch here of where I want the light switches, sockets, shower and cooker.
B: That’s very useful. I’ll use it to see what materials we’ll need and give you an estimate.
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
A. Listen to the dialogue again and circle Yes or No.
1. Jack invites Mr. Smith to visit his home.
Yes No
2. Jack doesn’t want to change the cables in his house.
Yes No
3. A continuous flow water heater can save more space.
Yes No
4. Jack draws a picture for where the electrical devices are.
Yes No
No
No
Yes
Yes
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
B. Reorder the letters with your partner.
Letters Words
ly u g
t ske ch
ful use
g tro s n
ous continu
un ed conceal
unconcealed
ugly
sketch
useful
strong
continuous
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
电缆安装
Cable wiring methods are less expensive to install than raceway systems and require less training for the installer. They offer the advantage of low first cost, but changes after initial construction are fairly difficult and expensive to make.
Individual conductors installed in tubular raceways are much less common in residential construction. A raceway is any enclosed channel designed for holding wires. Conduits and wiring gutters are both common examples of raceways. Raceway wiring systems are more expensive to install and require more training. They have the advantage that wires can be pulled out and replaced with new ones after original construction.
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
电缆安装
Certain general rules and considerations apply to all wiring methods, including the components and equipment used in the installation.
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
A. Match the English with the Chinese. Draw lines.
pull out the plug 应用于
original construction 初期成本
apply to the 相当困难
first cost 初始建造
fairly difficult 拔出插头
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
B. Read the passage again and answer the questions.
1. of cable wiring after initial construction are expensive to make.
2. A raceway is any enclosed channel designed for .
3. Raceway wiring systems are more expensive to .
Changes
holding wires
install
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
C. Learn the important grammar and phrase in the text.
1. pull out抽出
They have the advantage that wires can be pulled out and replaced with new ones after original construction. 它们的优点是可以使线缆在建造完成后被拔出，替换为新的线缆。
练习：机器开着时，不可将电缆插头拨出。
提示：Never, operate
英文：
2. apply to应用于
Certain general rules and considerations apply to all wiring methods. 某些常规的规则和注意事项在所有的布线方法中都适用。
练习：电工用这个方法判断电力变压器的故障。
提示：estimate, faults
英文：
Never pull out cable plug when machine operates.
Electricians apply this method to estimate the faults of power transformer.
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
Home’s electrical systems.
A home’s electrical system includes incoming（引入的）power lines, electric meter, service panel, subpanels, household wiring, electrical boxes, receptacles (or outlets), switches, and, of course, the appliances, lights, and equipment that put the power to work. Other electrical systems in a house include wiring for home entertainment, such as cable television（有线电视）, home theater, audio systems（音响系统）, and such, not to mention（更不必说）wiring for home communications such as telephones, security systems, doorbells（门铃）, and intercoms（对讲机）.
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
Home’s electrical systems.
Home wiring can be dangerous, depending upon the type. Standard-voltage electrical wiring, which serves electrical outlets, lights, appliances, and such must be handled carefully to avoid shock（电击）. But if you follow expert（内行）instructions and turn off the power to circuits and devices before working on them, you can do this type of work safely. Low-voltage wiring for cable television, speakers, security systems, and the like is very safe.
Look and Study
Dialogue
Reading
Further Study
9
3
Words and Phrases
kitchenette [,kit i'net] n. 小厨房 ugly [' ɡli] adj. 丑陋的 unconcealed adj. 不加隐藏的 heater ['hi:t ] n. 加热器 strong [str ] adj. 强的，强劲的 continuous [k n tinju s] adj. 连续的 phase [feiz] n. 相，阶段 sketch [sket ] n. 略图 cooker ['kuk ] n. 炊具 useful ['ju:sful] adj. 有益的，有帮助的 raceway ['reiswei] n. 电缆槽 installer [in'st :l ] n. 安装者，安装工 change [t eind ] vt. 改变；n. 变化 initial [i'ni l] adj. 最初的 fairly ['fε li] adv. 相当地 tubular ['tju:bjul ] adj. 管状的
enclosed [in'kl uzd] adj. 封闭式的
channel ['t n l] n. 通道
gutter ['ɡ t ] n. 槽
original [ 'rid n l] adj. 原始的
consideration [k n,sid 'rei n] n. 考虑因素

take down拆卸
underground cable埋地电缆
water heater热水器
in one’s case就某人情况
three-phase current三相电流
first cost最初成本
pull out抽出
apply to应用于

展开更多......

收起↑
