ELECTRICAL ENGLISH
英语
电工
Unit 1 Job and Workplace
Unit 2 Electrical Tools and Materials
Unit 3 House Wiring
Unit 4 Measuring Instrument

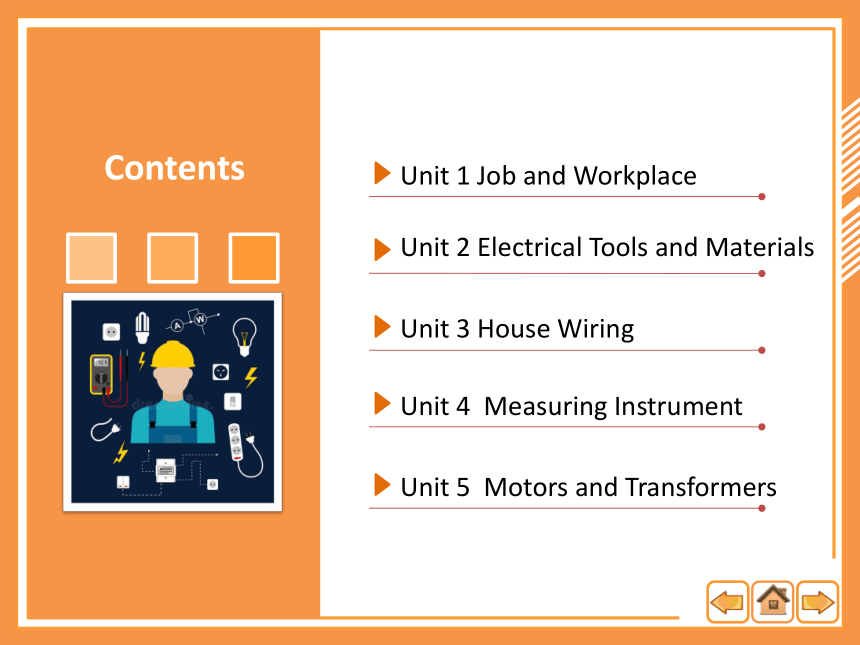

Contents
Unit 5 Motors and Transformers
Lesson 4 What Are in Your Tool-kit
Lesson 5 Wires and Cables
Lesson 6 Joining Wires

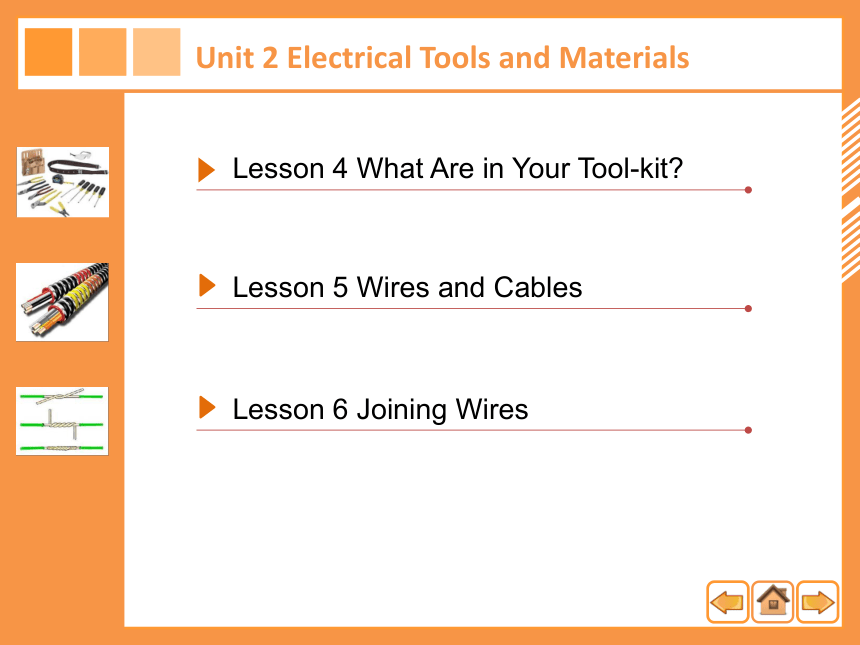

Unit 2 Electrical Tools and Materials

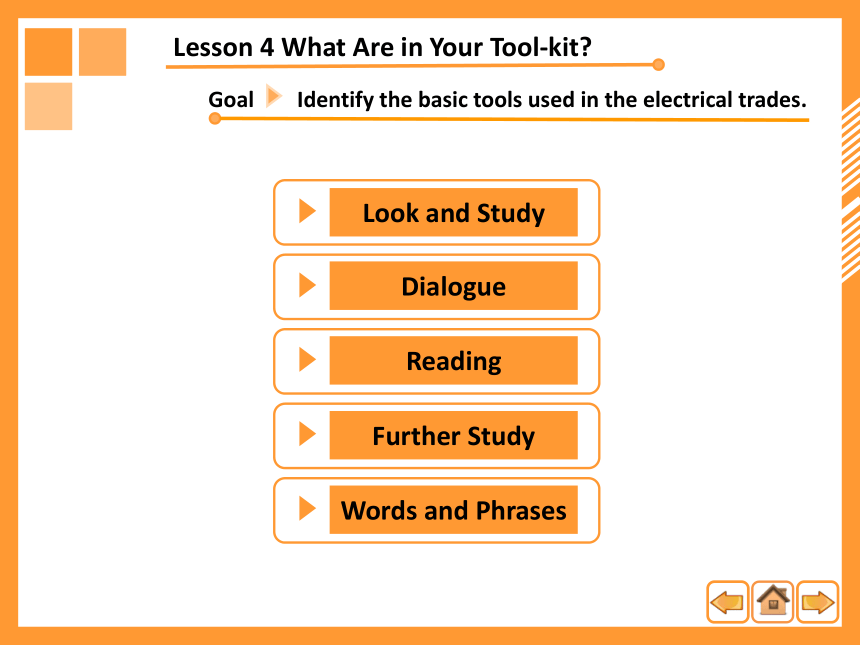

Lesson 4 What Are in Your Tool-kit
Goal Identify the basic tools used in the electrical trades.
Look and Study
Dialogue
Reading
Further Study
Words and Phrases
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

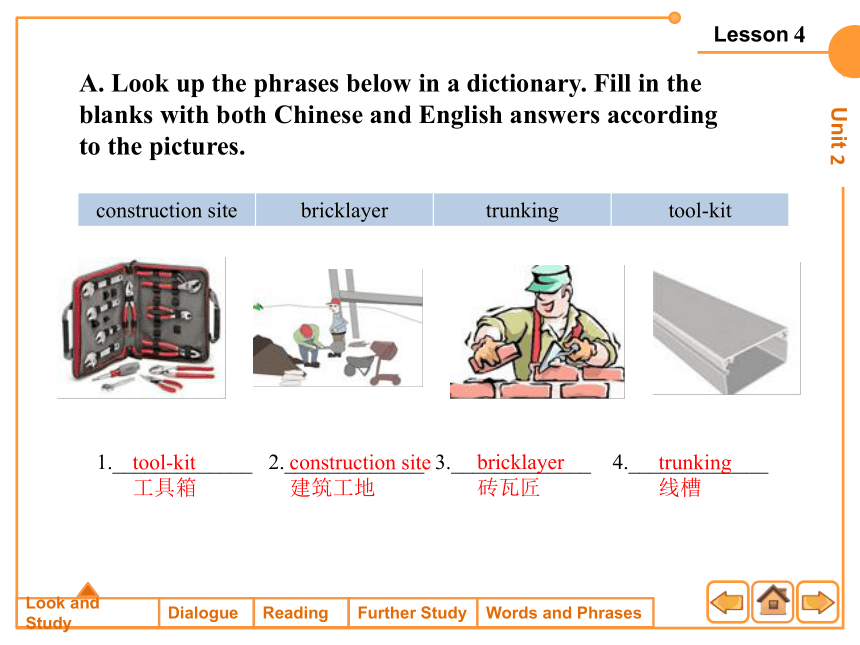

A. Look up the phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
construction site bricklayer trunking tool-kit
1._____________ 2._____________ 3._____________ 4._____________
tool-kit
工具箱
construction site
建筑工地
bricklayer
砖瓦匠
trunking
线槽
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

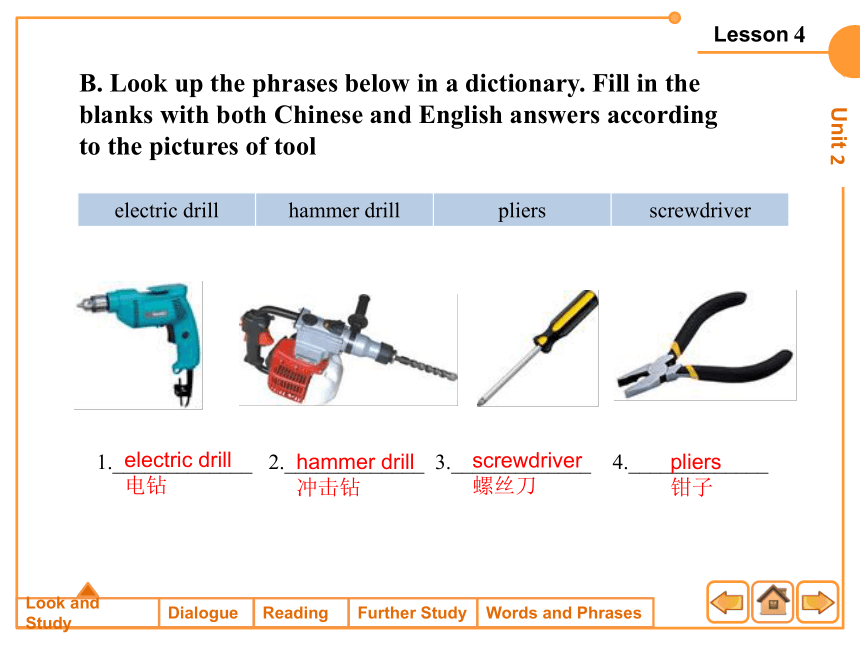

B. Look up the phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures of tool
electric drill hammer drill pliers screwdriver
1._____________ 2._____________ 3._____________ 4._____________
electric drill
电钻
hammer drill
冲击钻
screwdriver
螺丝刀
pliers
钳子
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

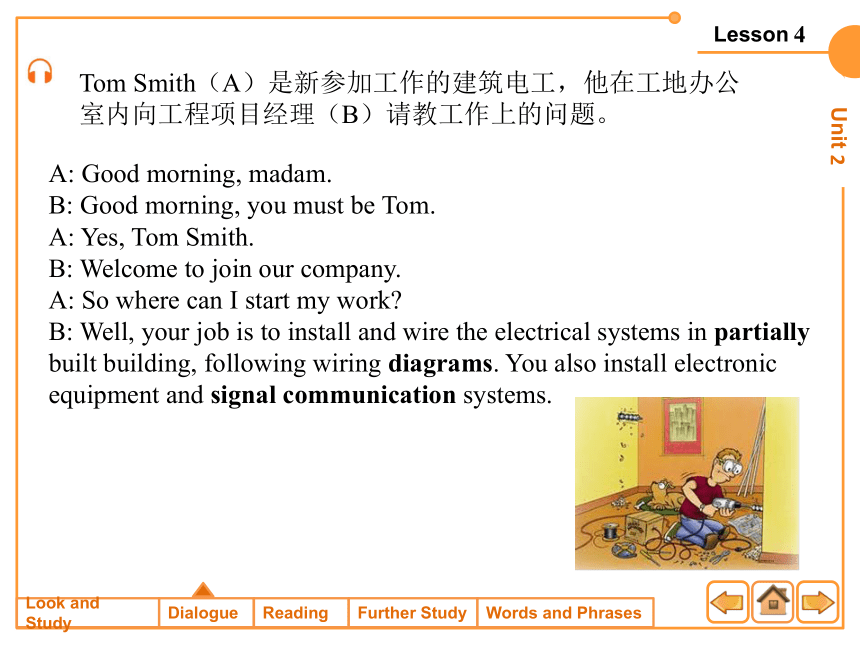

Tom Smith（A）是新参加工作的建筑电工，他在工地办公室内向工程项目经理（B）请教工作上的问题。
A: Good morning, madam.
B: Good morning, you must be Tom.
A: Yes, Tom Smith.
B: Welcome to join our company.
A: So where can I start my work
B: Well, your job is to install and wire the electrical systems in partially built building, following wiring diagrams. You also install electronic equipment and signal communication systems.
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

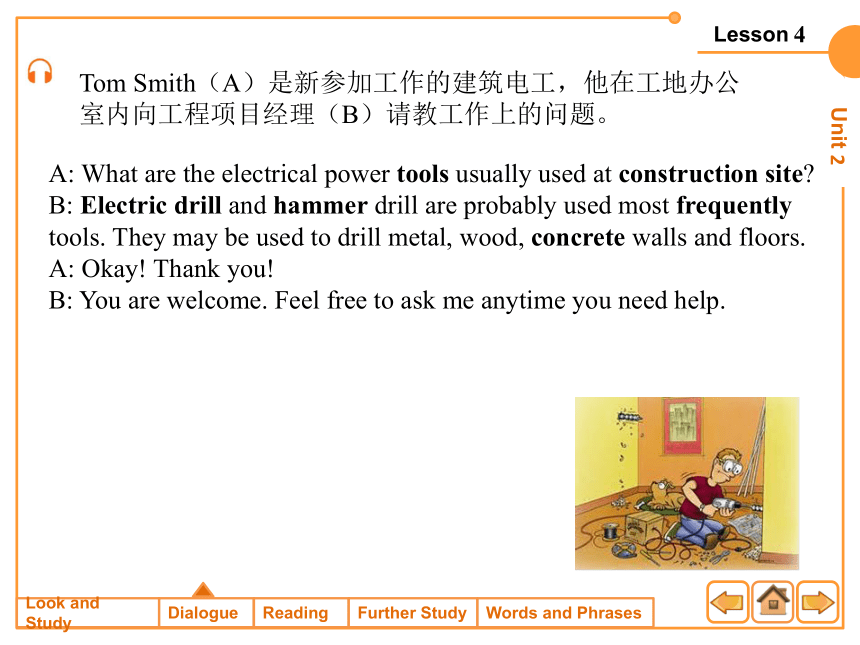

Tom Smith（A）是新参加工作的建筑电工，他在工地办公室内向工程项目经理（B）请教工作上的问题。
A: What are the electrical power tools usually used at construction site
B: Electric drill and hammer drill are probably used most frequently tools. They may be used to drill metal, wood, concrete walls and floors.
A: Okay! Thank you!
B: You are welcome. Feel free to ask me anytime you need help.
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

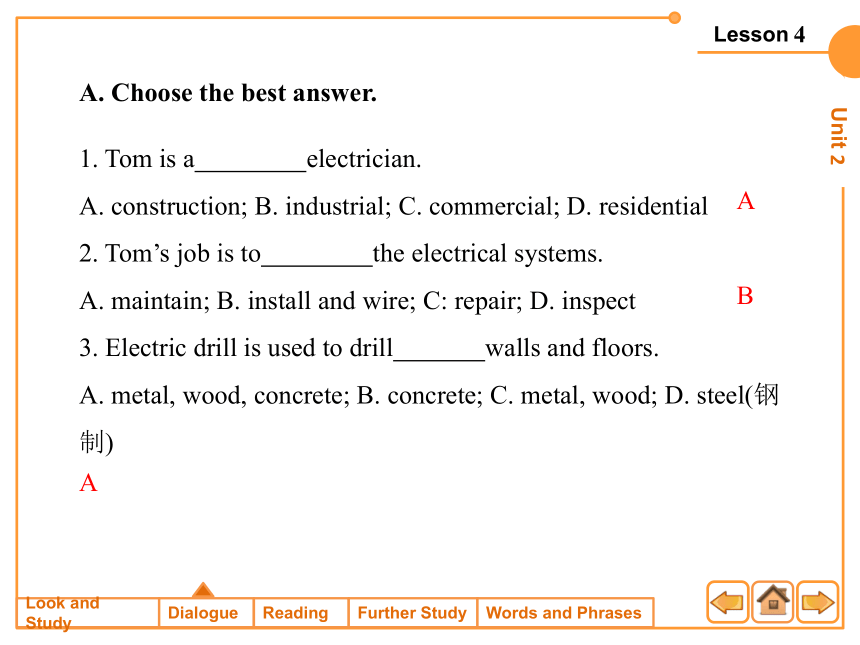

A. Choose the best answer.
1. Tom is a electrician.
A. construction; B. industrial; C. commercial; D. residential
2. Tom’s job is to the electrical systems.
A. maintain; B. install and wire; C: repair; D. inspect
3. Electric drill is used to drill walls and floors.
A. metal, wood, concrete; B. concrete; C. metal, wood; D. steel(钢制)
A
B
A
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

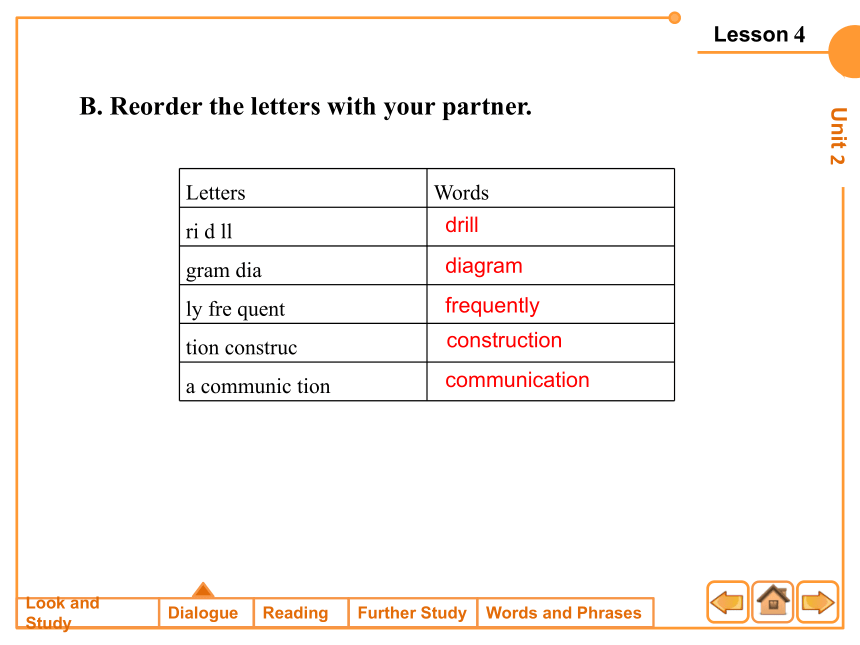

B. Reorder the letters with your partner.
Letters Words
ri d ll
gram dia
ly fre quent
tion construc
a communic tion
drill
diagram
frequently
communication
construction
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

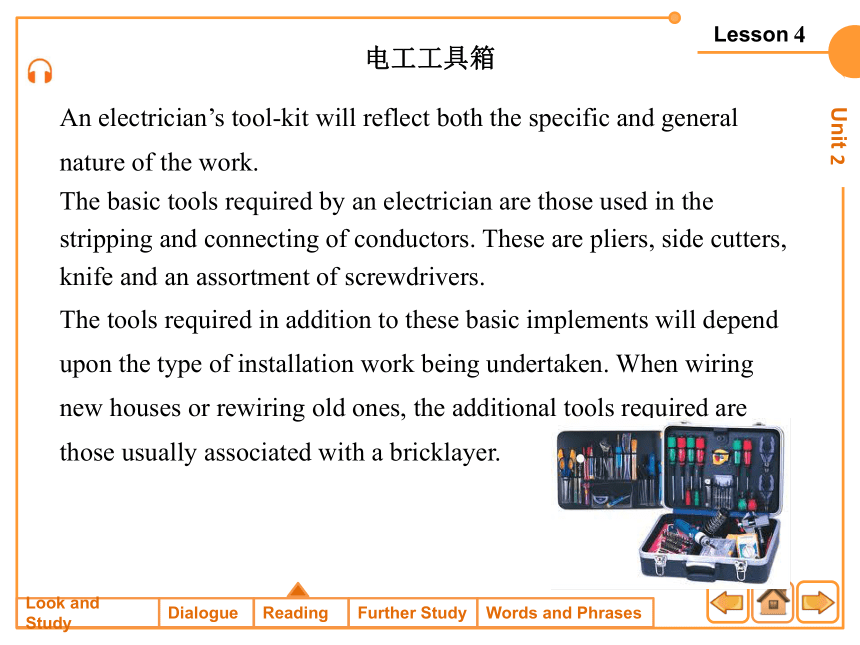

电工工具箱
An electrician’s tool-kit will reflect both the specific and general nature of the work.
The basic tools required by an electrician are those used in the stripping and connecting of conductors. These are pliers, side cutters, knife and an assortment of screwdrivers.
The tools required in addition to these basic implements will depend upon the type of installation work being undertaken. When wiring new houses or rewiring old ones, the additional tools required are those usually associated with a bricklayer.
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases

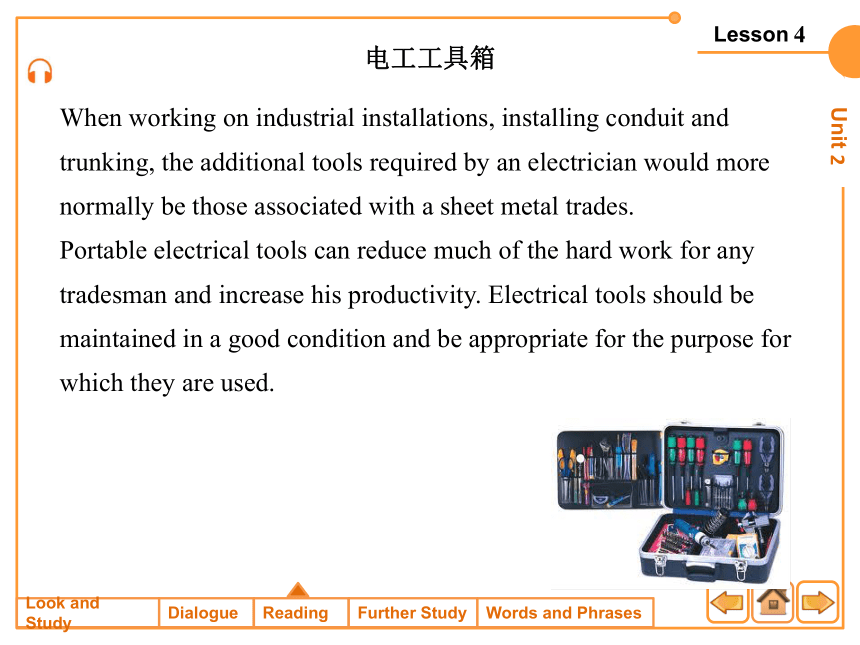

电工工具箱
When working on industrial installations, installing conduit and trunking, the additional tools required by an electrician would more normally be those associated with a sheet metal trades.
Portable electrical tools can reduce much of the hard work for any tradesman and increase his productivity. Electrical tools should be maintained in a good condition and be appropriate for the purpose for which they are used.
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases
A. Match the English with the Chinese. Draw lines.
B. Read the passage again and circle Yes or No.
1. The basic tools required by an electrician are power tools. Yes No
2. The basic tools are usually associated with a bricklayer. Yes No
3. The basic tools are associated with a sheet metal trades. Yes No
An assortment of sweets. 做科学实验
be appropriate for different students 什锦糖
work on science experiments 适合不同的学生
No
No
No
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases
C. Learn the important grammar and phrase in the text.
1. being done 现在分词的一般被动结构做定语，表示一个正在进行或与谓语动作同时发生的被动动作
The tools required in addition to these basic implements will depend upon the type of installation work being undertaken. 在基本工具外，还需要的工具取决于电工所从事的安装工作。
练习：The building being built now will be used as a hospital.
中文：
2. be associated with与……有关系
The additional tools required are those usually associated with a bricklayer. 另外一些工具通常与砖瓦匠工作有关。
练习：电气故障经常与绝缘材料失效有关。
提示：breakdown, failure, insulating
英文：
现在正在建造的建筑将会作为一个医院。
Electrical breakdown is often associated with the failure of insulating materials.
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases
Common Tools.
Needle-nose pliers
尖嘴钳
Side cutters
剪钳
Diagonal pliers
斜嘴钳
Wire strippers
剥皮钳
Flat-blade screwdriver一字旋具
Phillips screwdriver
十字旋具
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases
Common Tools.
Electrician’s knife电工刀 Slip-joint pliers鲤鱼钳 Test pencil验电笔
Hammer锤子
Steel measuring tape钢卷尺
Hacksaw弓锯
Adjustable wrenches活动扳手
Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases
partially ['pa: li] adv. 部分地 diagram['dai ɡr m] n. 图表 signal ['siɡn l] n. 信号 communication [k ,mju:ni'kei n] n. 通讯 tool [tu:l] n. 工具 construction [k n'str k n] 建造，建筑业 site [sait] n. 地点，位置；场所 electric [i'lektrik] adj. 电的；电动的 drill [dril] n. 钻孔机；vt. 钻孔 hammer ['h m ] n. 锤子，榔头 frequently ['fri:kw ntli] adv. 频繁地，经常地 concrete [k n'kri:t] adj. 混凝土的 kit [kit] n. 工具箱，成套工具 tool-kit工具箱（套） reflect [ri'flekt] vt. 反映 specific [spi'sifik] adj. 专门的，特定的 nature ['neit ] n. 性质，本性 conductor [k n'd kt ] n. 导体 plier ['plai ] n. 钳子 side [said] adj. 侧的
cutter ['k t ] n. 刀具，切割机
assortment [ 's :tm nt] n. 各种种类搭配
screwdriver['skru:,draiv ] n. 旋具，螺丝刀
implement ['implim nt] n. 工具，器具
undertake [, nd 'teik] vt. 承担
rewire [ri:'wai ] vi.重装电线
additional [ 'di n l] adj. 附加的，额外的
bricklayer ['brik,lei ] n. 泥瓦匠
conduit ['k ndit] n. 电线管
trunking ['tr ki ] n. 线槽
sheet [ i:t] n. 薄片，薄板
trade [treid] n. 贸易，行业
portable ['p :t bl] adj. 便携式的，手提式的
reduce [ri'dju:s] vt. 减少，降低
tradesman ['treidzm n] n. 技工
productivity [,pr d k'tiv ti] n.生产力，生产率

Look and Study
Dialogue
Reading
Further Study
4
2
Words and Phrases
wiring diagrams布线图
signal communication systems通信系统
construction site建筑工地
Tool kit 工具箱（套）
side cutters剪钳
an assortment of各种各样的
be associated with与……有关系
work on从事于
sheet metal钣金
much of许多、大量
be appropriate for对…适合
Lesson 5 Wires and Cables
Goal identify basic wires and cables
Look and Study
Dialogue
Reading
Further Study
Words and Phrases
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
Look up the phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures of wire and cable.
insulated solid wire insulated stranded wire
nonmetallic sheathed cable armored cable
1._____________ 2._____________ 3._____________ 4._____________
insulated solid wire
绝缘实心线
armored cable
铠装电缆
nonmetallic sheathed cable
非金属护套电缆
insulated stranded wire
绝缘多股绞线电线
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
Jane Goodall（A）通过电话订购电线，Mitchell（B）负责此项服务。
A: Hello, this is Jane Goodall. May I speak to Mr. Mitchell
B: Hello Ms. Goodall, this is Arthur Mitchell. How can I help you
A: Hello, I'd like to place an order for electrical wire.
B: How many are you interested in ordering for purchase
A: Quite a few. Can you tell me how to choose wire gauge
B: Calculate the amperage for each device, and look up your total amperage in the Maximum Amps for Power Transmission column of the gauge chart.
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
Jane Goodall（A）通过电话订购电线，Mitchell（B）负责此项服务。
A: Could I get an estimate before place an order
B: Certainly, I'll have it for you by the end of the day. How would you like to pay
A: Can you pay by cheque
B: I’m sorry. We only offer credit card payments or cash on delivery to new customers.
A: That’s OK. Cash on delivery, then, please. Thank you for your help.
B: My pleasure.
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
A. Listen to the dialogue and circle Yes or No.
1. Mitchell is responsible for selling products by phone？ Yes No
2. It is necessary to calculate the voltage of each deceive for choosing wire gauge. Yes No
3. The order must be paid by cash.
Yes No
B. Match the English with the Chinese. Draw lines.
place an order with you 电力传输
power transmission 向贵方订货
quite a few days 好几天
Yes
No
No
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
电线和电缆
Technically, the metallic material through which electric current flows is called a conductor. In practical terms, most people call it wire.
There are three different styles of wire. Bare wire is just what the name states, non insulated. Insulated solid wire is a solid piece of wire that is coated and encased in a plastic coating. The last is insulated stranded wire. This has many smaller sized strands of copper and is also wrapped in a protective plastic coating.
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
电线和电缆
There are two different types of cables that are normally used. The nonmetallic sheathed cable has two or more insulated conductors and usually a bare ground wire. They are all wrapped in an outer protective plastic sheath. The other is armored cable in which there is a black, red, white and green insulated wire inside of a protective flexible metal housing.
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
A. List the types of wire and cable.
B. Reorder the letters with your partner.
Wire Cable



Letters Words
ent curr
en case d
lic metal
protec tive
non metal lic
bare wire
insulated solid wire
insulated stranded wire
nonmetallic sheathed cable
armored cable
nonmetallic
current
encased
metallic
protective
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
C. Learn the important grammar and phrase in the text.
1. which引导定语从句
Technically, the metallic material through which electric current flows is called a conductor. 在专业技术上，通过电流的金属材料称为导线。
练习：He built a telescope through which he could study the skies.
中文：
2. in...terms（in terms of sth.） 谈及；就…而言；在…方面
In practical terms, most people call it wire. 实际上，多数人称之为电线。
练习：中国在太阳能发电方面具有优势。
提示：solar power generation
英文：
他做了一个望远镜，通过它可以研究天空。
China has advantage in terms of solar electrical energy generation.
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
How to Select Electrical Wire？
Because so many types of wire are available（可用）, it can sometimes be difficult for buyers（买主）to choose the best material to meet their needs. The wrong wire may cause a device to malfunction（失灵）, and even lead to increased fire risks depending on the application（应用）. To choose the correct electrical wire, consider features such as gauge, amps, temperature and color before making your final selection.
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
Wiring Color Codes（电线颜色规范）
IEC (most of Europe) AC power（交流电）circuit（电路）wiring color codes（规范） Function功能 Label标记 Color
Protective earth保护接地 PE green-yellow
Neutral中性线 N blue
Line, single phase单相线 L brown
Line, 3-phase三相线 L1 brown
Line, 3-phase L2 black
Line, 3-phase L3 grey
US AC power circuit wiring color codes Function Label Color
Protective ground保护接地 PG bare, green, or green-yellow
Neutral N white
Line, single phase L black or red
Line, 3-phase L1 black
Line, 3-phase L2 red
Line, 3-phase L3 blue
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
place [pleis] vt. 放置，发订单 purchase ['p :t s] n. 购买 gauge [ɡeid ] n. 规格 calculate ['k lkjuleit] vt. 计算 amperage [' mp rid ] n. 安培数 device [di'vais] n. 装置 total ['t ut l] adj. 全部的 maximum ['m ksim m] adj.最大极限的 amp [' mps] n. 安培数 transmission [tr nz'mi n] n. 传送 column ['k l m] n. 栏，列 chart [t ɑ:t] n. 图表 estimate ['estimeit] n.估价 cheque [t ek] n. 支票 credit ['kredit] n. 信用 payment ['peim nt] n. 付款，支付
cash [k ] n. 现款，现金
delivery [di'liv ri] n. 交货；vt. 传送
technically ['teknikli] adv. 技术上
metallic [mi't lik ] adj. 金属的
current ['k r nt] n. （水，气，电）流
flow [fl u] n. 流动
practical ['pr ktik l] adj. 实际的
term [t :m] n. 术语
style [stail] n. 类型
bare [bε ] adj. 裸露的
state [steit] vt. 声明，陈述
insulate ['insjuleit]vt. 使绝缘
insulated ['ins ,leit d] adj. 绝缘的
solid ['s lid] adj. 固体的，实心的
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
coated ['k utid] adj. 上涂料的，覆盖着的 stranded ['str ndid] adj.绞成股的 encased adj. 包装的 coating ['k uti ] n. 包层 strand [str nd] n. 线 size [saiz] vt. 改变大小 copper ['k p ] adj. 铜的 wrap [r p] vi. 包起来 protective [pr u'tektiv] adj. 防护的 nonmetallic [,n nmi't lik] adj. 非金属的
sheathed [ i:θt] adj. 装有护套的
outer ['aut ] adj. 外面的
sheath [ i:θ] n. 护套
armored ['ɑ:m d] adj. 装甲的
inside [,in'said] prep. 在…之内
flexible ['fleksibl] adj. 柔韧的，易弯曲的
Look and Study
Dialogue
Reading
Further Study
5
2
Words and Phrases
place an order订购
quite a few相当多
credit card信用卡
power transmission电力传输
cash on delivery货到付现
current flow电流
in terms…就……而言
no insulated 非绝缘的
solid wire单线，实芯线
stranded wire绞线
nonmetallic sheathed cable非金属护套电缆
ground wire地线
armored cable铠装电缆
Lesson 6 Joining Wires
Goal learn descriptions of basic wire joining methods
Look and Study
Dialogue
Reading
Further Study
Words and Phrases
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
A. Look up the phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures.
soldering gun safety sign power line electrical panel
1._____________ 2._____________ 3._____________ 4._____________
safety sign
安全标志
electrical panel
配电盘
power line
输电线
soldering gun
烙铁
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
B. Look up the word and the phrases below in a dictionary. Fill in the blanks with both Chinese and English answers according to the pictures of wire joining.
tap connector wire nut splice
1._____________ 2._____________ 3._____________
tap connector
搭接连接器
Splice
捻接
wire nut
接线帽
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
Jim（A）向电工Marry（B）请教关于电气安全标志含义的问题。
A: I’m not quite sure the meaning of this sign, Keep Electrical Panel Clear. Dose it mean keep the panel clear
B: Yes, that’s right, but it means more than that. It means do not place or store anything in front of this sign. This sign reminds employees that it must be possible to get to the electrical panel at all times.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
Jim（A）向电工Marry（B）请教关于电气安全标志含义的问题。
A: Oh, I see. And what about Power Lines Above sign Has it got something to do with safety
B: Yes, but here it means watch out for power lines above when you are working below.
A: OK, I get it. Now what dose High Voltage Keep Away sign mean
B: It means an urgently hazardous situation. If not avoided, will result in death or serious injury.
A: Ok, I’ve made a note of that.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
A. Match the English with the Chinese. Draw lines.
have something to do with the education methods(方法). 远离火源
watch out for what you say. 与教育方法有关系
keep away from the fire. 说话要当心
B. Match the pictures of safety sign with their meanings. Draw lines.
Keep away urgently hazardous situation.
Do not place or store anything in front of this sign.
Watch out for power lines above when you are working below.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
电线连接
Solderless connectors (wire nuts) have almost completely replaced soldering and taping for certain types of splices. They are designed to hold several electrical wires firmly together and provide an insulating cover for the wires. They are available in several sizes. The size of the solderless connector is determined by the number and the size of the wires to be joined.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
电线连接
Because solderless connectors are time-saving and easy to use, the electrician no longer needs to solder each and every splice. It not only takes less time to make a solderless connection but also requires less skill.
However, soldering is still the most reliable method of joining pieces of wire, and every electrician should learn how to solder.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
电线连接
Once the decision is made to solder an electrical splice and the insulation has been stripped off the wire, the splice should be soldered as soon as possible.
Solder usually comes in either bar or wire form and is melted with heat from soldering devices, such as a soldering iron, soldering gun or propane torch.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
A. Reorder the letters with your partner.
ch t or
j in o
er s d ol
thod m e
tion connec
B. Read the passage again and answer the questions.
1. Solderless have almost completely replaced some types of wire soldering.
2. The size of the solderless connector is determined by of the wires to be joined.
3. It not only takes to make a solderless connection but also requires .
4. Solder is melted with heat from .
connection
torch
join
solder
method
connectors
the number and the size
less time
less skill
soldering devices
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
C. Learn the important grammar and phrase in the text.
1. be determined by由…所决定
The size of the solderless connector is determined by the number and the size of the wires to be joined. 非焊接连接器的尺寸规格由所连接的导线数量和尺寸决定。
练习：熔断器的特性由熔丝决定。
提示：property, fuse
英文：
2. Once 一……就……
Once the decision is made to solder an electrical splice and the insulation has been stripped off the wire, the splice should be soldered as soon as possible. 一旦决定焊接一个电气接头，并且已经剖削导线绝缘层，应尽快完成绞接头的焊接。
练习：Once you have begun， you must continue．
中文：
The property of the fuse is determined by fuse wire.
一旦你开始就必须坚持。
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
How to Solder.
First a few safety precautions（预防）:
Never touch the element（原件）or tip（尖端）of the soldering iron.
Take great care to avoid touching（避免接触）the mains flex（皮线）with the tip of the iron.
Always return the soldering iron to its stand（台座）when not in use.
Work in a well-ventilated area（通风良好区域）.
Wash your hands after using solder.
Preparing the soldering iron:
Place the soldering iron in its stand and plug in（接通电源）.
Dampen the sponge（润湿海绵）in the stand.
Wait a few minutes for the soldering iron to warm up（变热）.
Wipe（擦拭）the tip of the iron on the damp sponge.
Melt a little solder on the tip of the iron.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
How to Solder.
You are now ready to start soldering:
Hold the soldering iron like a pen, near the base of the handle（柄的基部）.
Touch the soldering iron onto the joint（连接点）to be made.
Feed（添加）a little solder onto the joint.
Remove（移开）the solder, then the iron, while keeping the joint still.
Inspect（检查）the joint closely（接近地）.
Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
sign[sain] n.符号，标志 panel['p nl] n. 仪表板 remind [ri'maind] vt. 提醒 urgently [' :d ntli] adv. 迫切地，紧急地 hazardous ['h z d s] adj. 有危险的 avoid [ 'v id] vt. 避免，避开 result [ri'z lt] vi. 结果，导致 injury ['ind ri] n. 伤害 solderless['s ld lis] adj. 非焊接的 connector[k 'nekt ] n. 连接器，连接头 nut [n t] n. 螺母，螺帽 almost [' :lm ust] adv. 差不多，几乎 completely [k m'pli:tli] adv. 完全地，彻底地 solder ['s ld ] vi. 焊接n. 焊料 tap [t p] vt. 搭接 splice [splais] vt. 绞接，捻接 hold [h uld] vt. 握着，夹住
firmly ['f :mli] adv. 坚固地，稳固地
available [ 'veil bl] adj. 有效的，可利用的
determine [di't :min] vi. 决定
join [d in] vt. 结合，连接
time-saving ['taim,sevi ] adj. 节省时间的
connection [k 'nek n] n. 连接
method ['meθ d] n. 方法
insulation [,insju'lei n] n. 绝缘
bar [bɑ:] n. 条，棒
form [f :m] n.形状，外形
melt [melt] vi. 熔化
iron ['ai n] n. 烙铁
propane ['pr upein] n. 丙烷
torch [t :t ] n. 喷灯


Look and Study
Dialogue
Reading
Further Study
6
2
Words and Phrases
keep clear保持通畅
electrical panel配电盘
at all times始终
power line输电线
have(get) something to do with与…有关
watch out小心
keep away离开
result in导致，结果是
be determined by由…所决定
time saving 节省时间的
each and every每一个
as soon as possible尽快
soldering iron锡焊烙铁
propane torch液化气喷灯

展开更多......

收起↑
