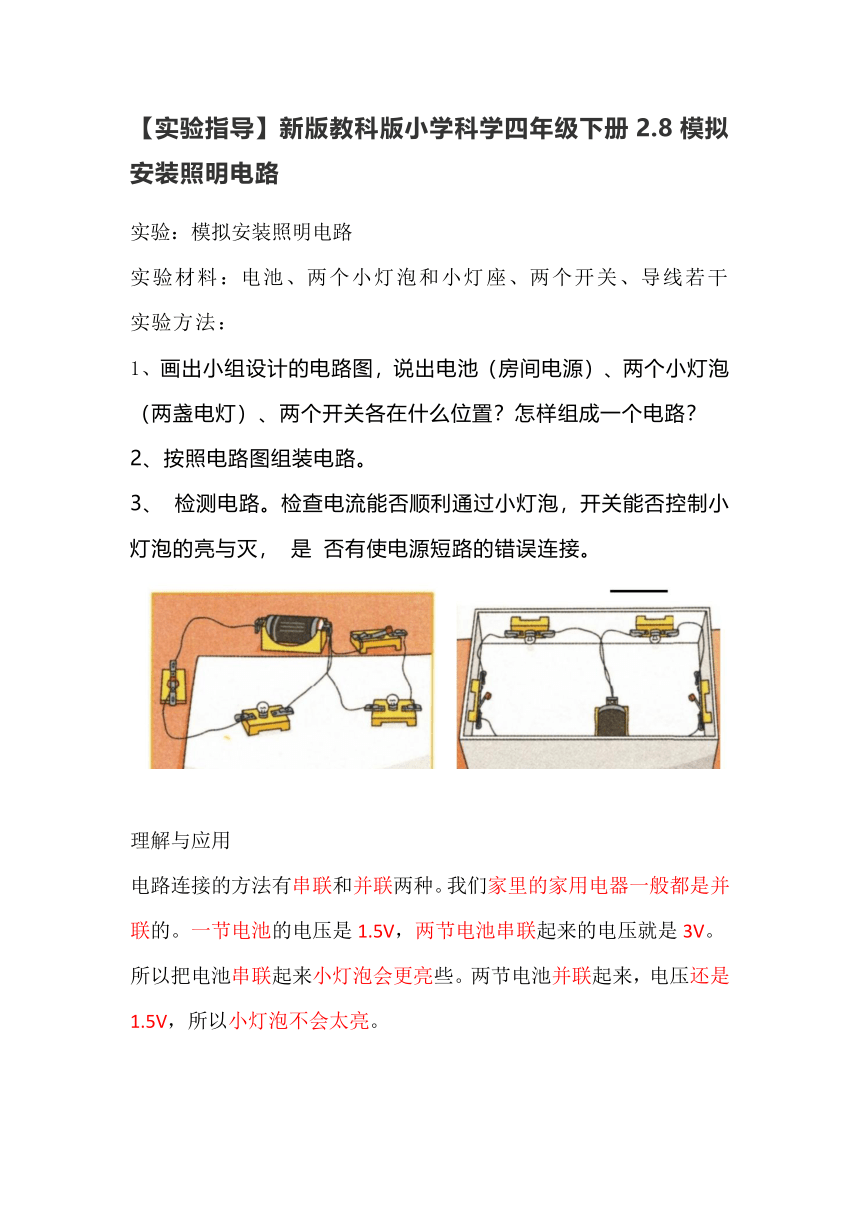

【实验指导】新版教科版小学科学四年级下册2.8模拟安装照明电路
实验：模拟安装照明电路
(?http:?/??/?mp.weixin.?/?s?__biz=MzI4NjA0NDk1Nw==&mid=2247489862&idx=2&sn=3bf254763f8919f84a8250187e5d7f1f&chksm=ebe3bf34dc9436225e6b798afa71eaade28623958896173fc4c15a86fa07fc77792bd84de053&scene=21"
\l
"wechat_redirect"
\t
"https:?/??/?mp.weixin.?/?_blank?)
实验材料：电池、两个小灯泡和小灯座、两个开关、导线若干
(?http:?/??/?mp.weixin.?/?s?__biz=MzI4NjA0NDk1Nw==&mid=2247489862&idx=2&sn=3bf254763f8919f84a8250187e5d7f1f&chksm=ebe3bf34dc9436225e6b798afa71eaade28623958896173fc4c15a86fa07fc77792bd84de053&scene=21"
\l
"wechat_redirect"
\t
"https:?/??/?mp.weixin.?/?_blank?)
实验方法：
(?http:?/??/?mp.weixin.?/?s?__biz=MzI4NjA0NDk1Nw==&mid=2247489862&idx=2&sn=3bf254763f8919f84a8250187e5d7f1f&chksm=ebe3bf34dc9436225e6b798afa71eaade28623958896173fc4c15a86fa07fc77792bd84de053&scene=21"
\l
"wechat_redirect"
\t
"https:?/??/?mp.weixin.?/?_blank?)
1、画出小组设计的电路图，说出电池（房间电源）、两个小灯泡（两盏电灯）、两个开关各在什么位置？怎样组成一个电路？
(?http:?/??/?mp.weixin.?/?s?__biz=MzI4NjA0NDk1Nw==&mid=2247489862&idx=2&sn=3bf254763f8919f84a8250187e5d7f1f&chksm=ebe3bf34dc9436225e6b798afa71eaade28623958896173fc4c15a86fa07fc77792bd84de053&scene=21"
\l
"wechat_redirect"
\t
"https:?/??/?mp.weixin.?/?_blank?)
2、按照电路图组装电路。
(?http:?/??/?mp.weixin.?/?s?__biz=MzI4NjA0NDk1Nw==&mid=2247489862&idx=2&sn=3bf254763f8919f84a8250187e5d7f1f&chksm=ebe3bf34dc9436225e6b798afa71eaade28623958896173fc4c15a86fa07fc77792bd84de053&scene=21"
\l
"wechat_redirect"
\t
"https:?/??/?mp.weixin.?/?_blank?)
3、
检测电路。检查电流能否顺利通过小灯泡，开关能否控制小灯泡的亮与灭，
是
否有使电源短路的错误连接。
(?http:?/??/?mp.weixin.?/?s?__biz=MzI4NjA0NDk1Nw==&mid=2247489862&idx=2&sn=3bf254763f8919f84a8250187e5d7f1f&chksm=ebe3bf34dc9436225e6b798afa71eaade28623958896173fc4c15a86fa07fc77792bd84de053&scene=21"
\l
"wechat_redirect"
\t
"https:?/??/?mp.weixin.?/?_blank?)
理解与应用
电路连接的方法有串联和并联两种。我们家里的家用电器一般都是并联的。一节电池的电压是1.5V，两节电池串联起来的电压就是3V。所以把电池串联起来小灯泡会更亮些。两节电池并联起来，电压还是1.5V，所以小灯泡不会太亮。
电路中的电压超过了小灯泡上标的1.5V，灯泡太亮会烧坏灯泡的。电池串联，电压为3V，小灯泡亮，电池并联，电压仍然是1.5V，小灯泡暗。
